Premium Home Care Bed – Torontech 5

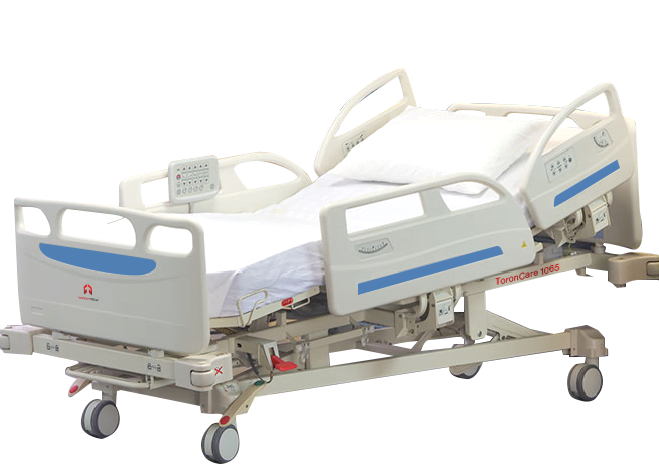

Premium Electric Hospital Bed – Model 5

Advanced Care | Smart Design | Maximum Safety

The Model 5 Premium Electric Hospital Bed is engineered for superior performance in both clinical and long-term care environments. With advanced ergonomic functions, intuitive controls, and a robust safety design, this bed supports optimal patient outcomes while simplifying caregiver tasks.

Key Features

• Split Side Rails
  Four high-strength PP safety rails provide enhanced fall protection and patient security.

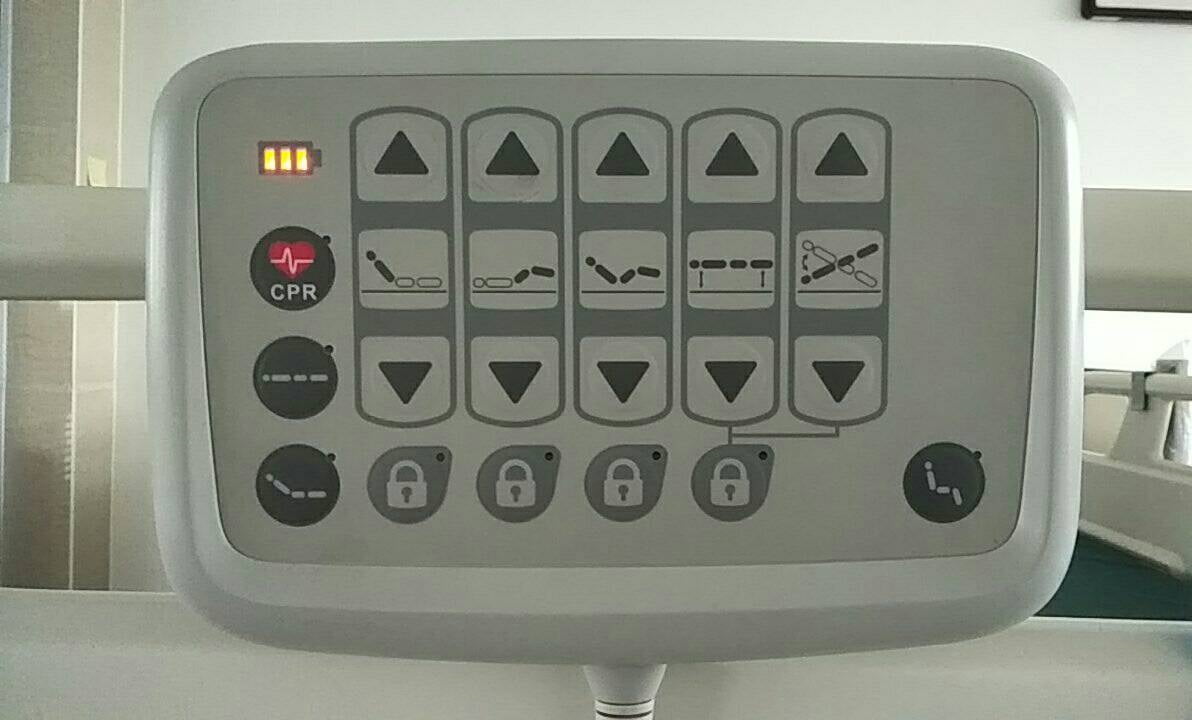

• Central Nurse Control Panel
  Allows full-position control at the bedside for convenient and efficient care management.

• Integrated Bed Extension
  Easily accommodates taller patients without compromising safety or comfort.

• X-Ray Cassette Holder
  Enables in-bed imaging, reducing the need for patient transfers and minimizing disruption.

• CPR Function – Manual & Electric
  Quick, reliable access in emergencies to flatten the bed instantly for resuscitation.

• Removable Mattress Platform
  Allows for thorough cleaning and disinfection — ideal for infection control.

• Built-in Linen Shelf
  Convenient foot-end storage keeps linens and supplies within easy reach.

• Lockable Head and Foot Boards
  Secure during transport to ensure patient safety and prevent accidental detachment.

Advanced Positioning Options

• Trendelenburg Position
  Head lower than feet – promotes circulation and surgical prep support.

• Reverse Trendelenburg
  Head higher than feet – aids in respiratory support and pressure ulcer prevention.

Technical Specifications

• Overall Dimensions:
  2,220 mm (L) × 1,075 mm (W)

• Mattress Platform:
  1,960 mm × 900 mm

• Height Range:
  440 mm – 760 mm

• Backrest Angle:
  Up to 70°

• Thigh Rest Angle:
  Up to 25°

• Trendelenburg Tilt:
  Up to 12°

• Side Rail Height:
  380 mm

• Safe Working Load:
  200 kg (440.9 lbs)

Engineered for modern care environments, the Model 1065 is the perfect solution for hospitals, rehabilitation centers, and advanced home care needs. Trust GM Home Care Inc. to deliver high-quality, safety-first equipment for every stage of recovery.
